Missouri Department of Transportation I-70 Noise Walls

Missouri Department of Transportation I-70 Noise Walls

OwnerMissouri DOT
Completion Date2018
ServicesStructural Design
Project Description

After the widening of I-70 in O’Fallon, MO, many local subdivisions and a local school approached or exceeded Noise Abatement Criteria.

Read More

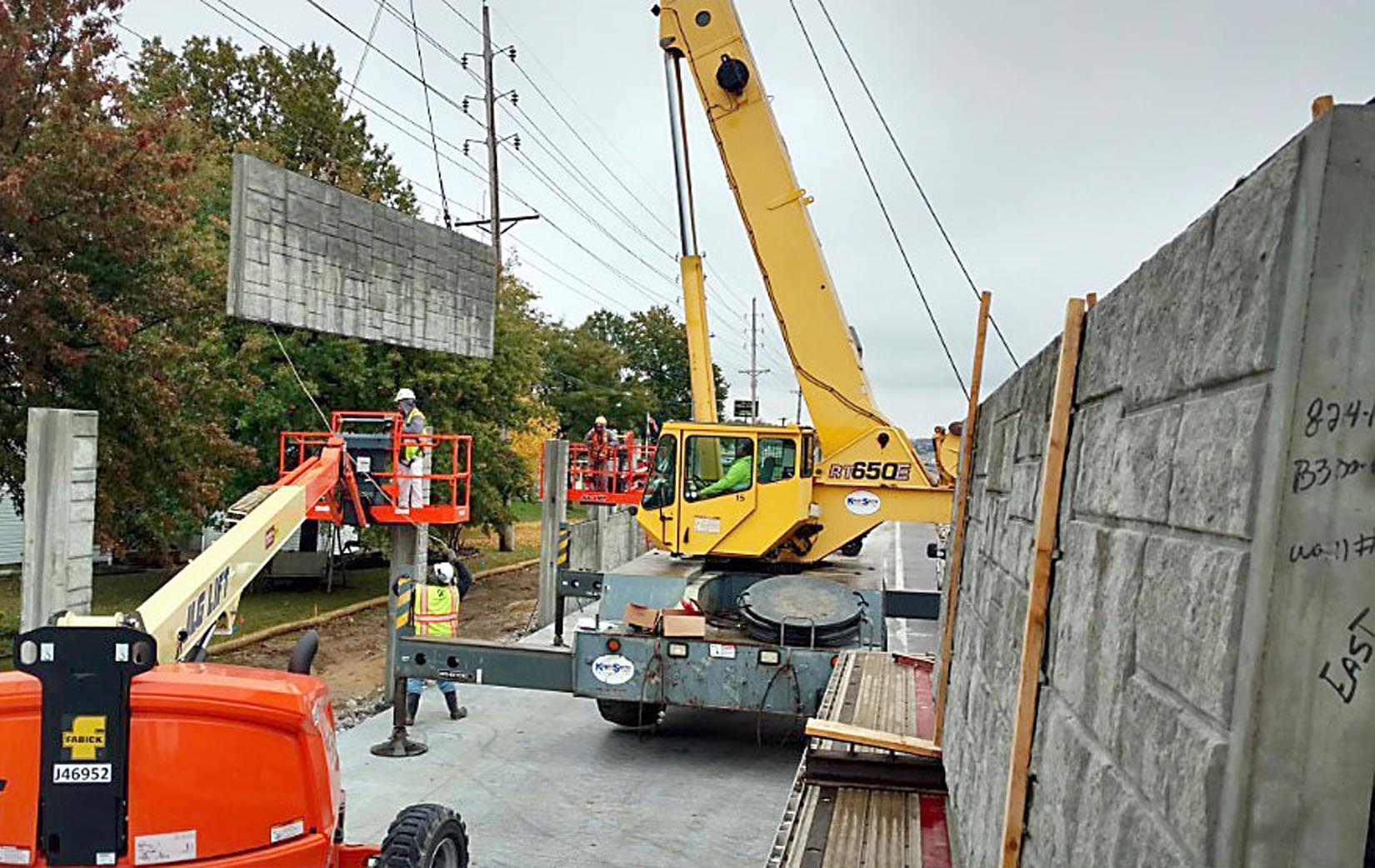

To address the problem, sound abatement wall to reduce highway noise for homes along the interstate were custom designed and installed. The individual panels averaged 6’H x 24’L and posts were spaced at 25’ on center and averaged 12’ tall. Both panels and posts were manufactured with an ashlar stone form-liner on each side. The precast concrete products were produced in two months and they were installed in about five days. Delta Precast provided structural design and drawings for approximately 24,280 sq. ft. of precast concrete noise walls and posts.
