Cascade Mountain Ski Resort Retaining Walls

Cascade Mountain Ski Resort Retaining Walls

OwnerCascade Mountain Ski Resort
Completion Date2018
ServicesStructural Design
Project Description

Intense 2018 summer rainfall and significant ground saturation caused the existing timber retaining walls at Cascade Mountain, a ski, snowboard, and snow tube resort located in Portage, WI, to fail.

Read More

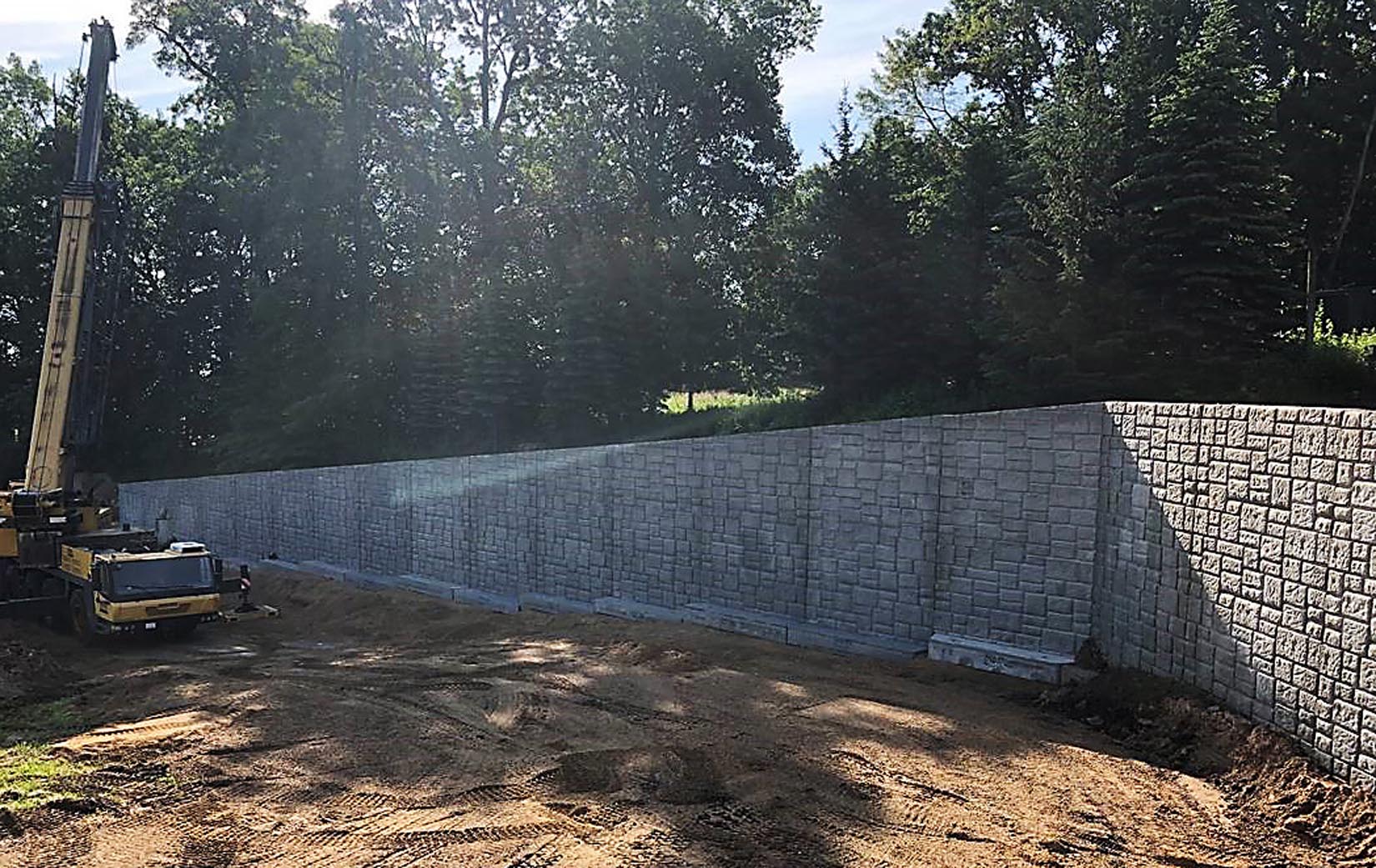

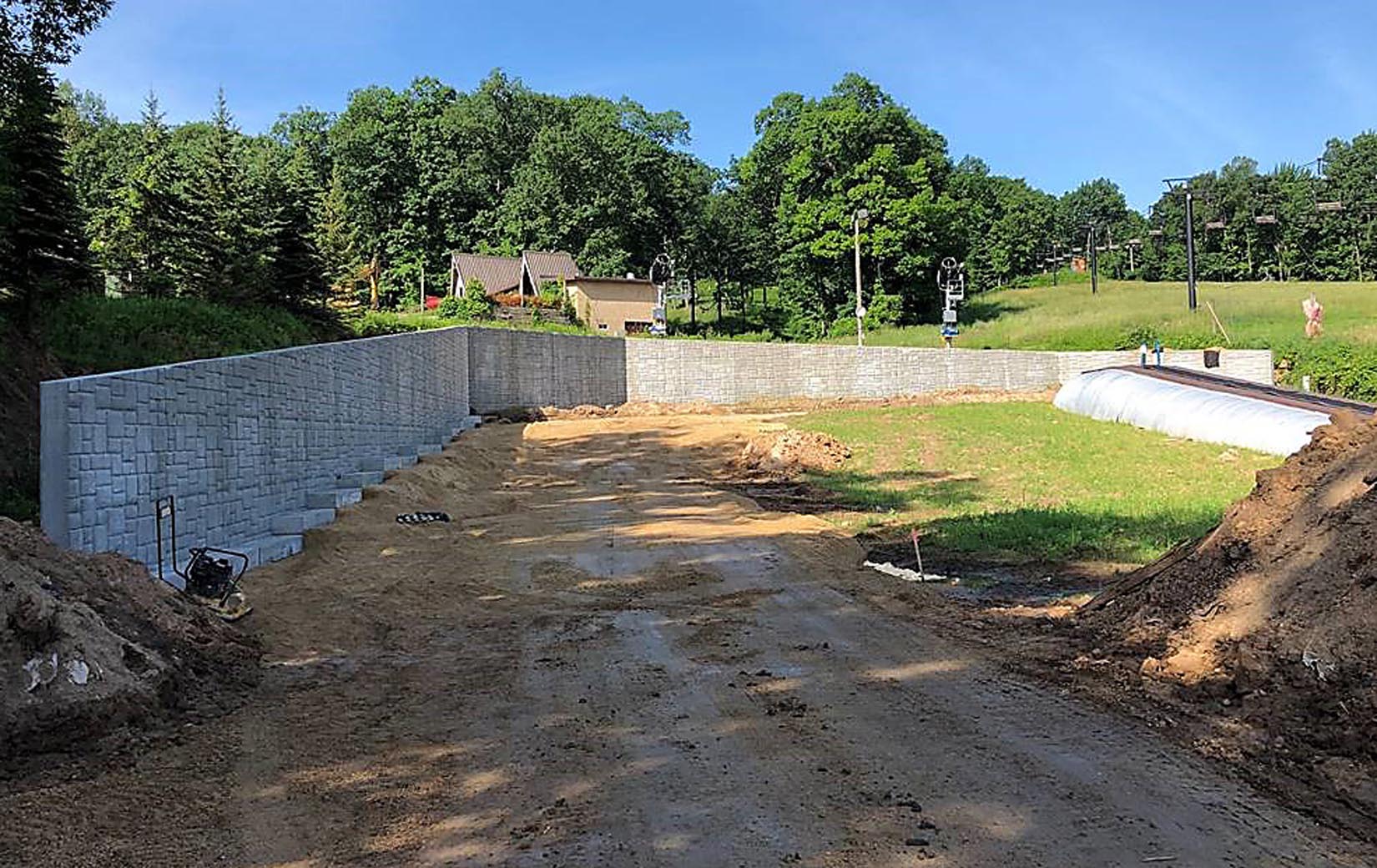

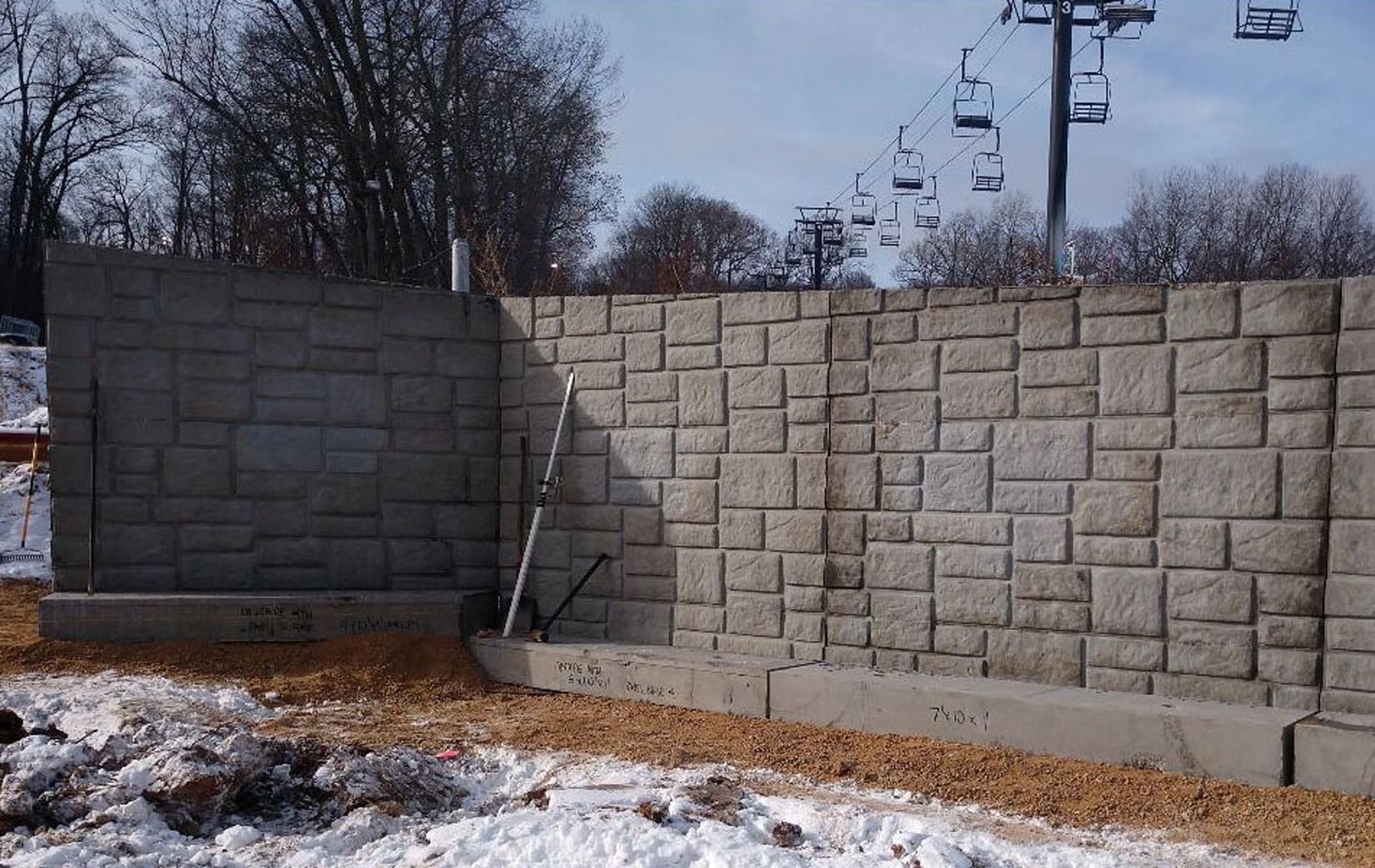

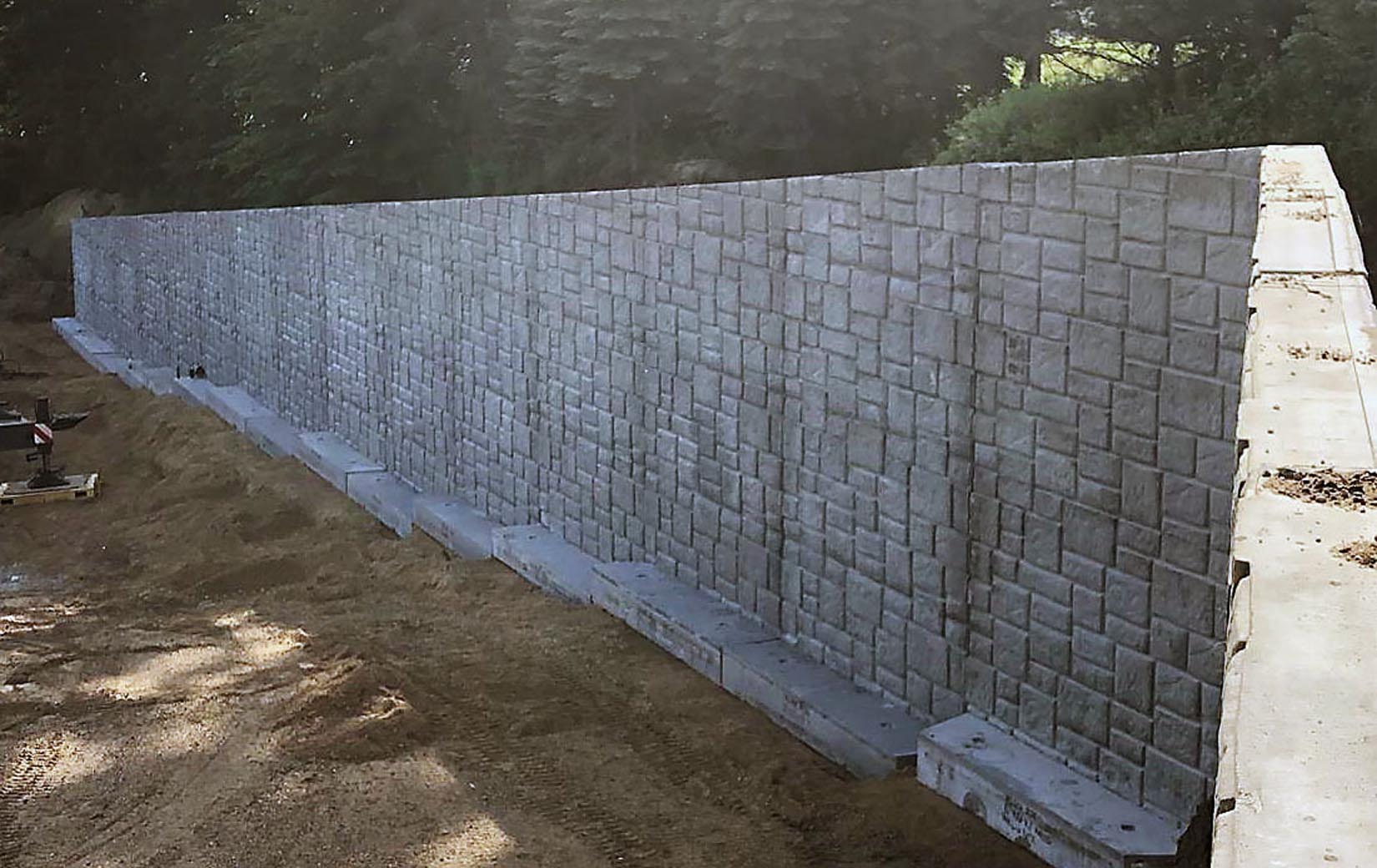

New precast concrete retaining walls were installed around the bunny hill and carpet lift as well as two 6’ x 10’ three-sided vaults to house the top and bottom of the carpet lift while providing easy maintenance access. The lift was raised using precast concrete blocks as the foundation. Wieser Concrete produced approximately 310 linear feet of freestanding precast retaining walls with a formliner finish ranging 8’ to 16’ tall. Delta Precast provided PE sealed design calculations for the custom design that fit the mountain topography.
